The honeycomb structure inside a catalytic converter is an ingenious design that plays a crucial role in reducing harmful emissions produced by vehicles. This unique structure is essential for the converter to efficiently convert toxic gases like carbon monoxide, nitrogen oxides, and hydrocarbons into less harmful substances such as carbon dioxide, nitrogen, and water vapor. The honeycomb catalyst, a core part of modern catalytic converters, offers a high surface area for chemical reactions, promoting efficient emission control. This design maximizes both the functional capabilities and the durability of the converter, making it an indispensable component of the modern exhaust system.
A catalytic converter's honeycomb structure consists of thousands of parallel channels that provide an extensive surface area for catalytic reactions to occur. This design is primarily aimed at enhancing the efficiency of the converter by increasing the space available for exhaust gases to interact with the catalyst.
The honeycomb structure’s design may look simple, but it is a product of careful engineering. The channels within the honeycomb are typically coated with precious metals such as platinum (Pt), palladium (Pd), and rhodium (Rh). These metals act as catalysts, speeding up the chemical reactions that neutralize harmful substances in the exhaust gases. These reactions are what transform pollutants like carbon monoxide into less harmful compounds like carbon dioxide. The honeycomb design maximizes this process by allowing a larger surface area for the gases to interact with the precious metal catalysts.
Catalytic converters use different types of substrates to create the honeycomb structure. These substrates can be made from either ceramic or metal, each with its distinct properties and advantages.

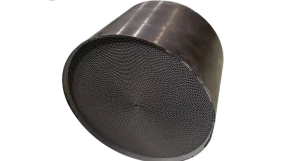

Metal honeycomb substrates are increasingly used in modern catalytic converters, particularly in vehicles that require higher performance and durability. These substrates are made from thin, metallic materials like stainless steel, which are shaped into honeycomb patterns. The benefits of metal substrates include:
Durability and Temperature Resistance: Metal honeycomb substrates can withstand temperatures up to 1300°C, which is crucial for high-performance vehicles or those operating in extreme conditions. These high temperatures are encountered frequently in the exhaust system, especially when the vehicle accelerates or is in high-demand driving scenarios.
Longer Lifespan: Metal substrates tend to have a longer lifespan compared to their ceramic counterparts. They are less prone to cracking under thermal stress, making them an ideal choice for vehicles that undergo rapid acceleration or extensive use.
Enhanced Strength: The metal honeycomb structure provides additional mechanical strength and durability, making it more resistant to physical damage during vehicle operation.
These properties make metal honeycomb substrates the preferred choice for heavy-duty vehicles, high-performance cars, and other applications where robustness is needed.
Ceramic honeycomb substrates, made from materials like cordierite, are commonly used in the catalytic converters of standard passenger vehicles. Ceramic substrates offer the following advantages:
Cost-Effectiveness: Ceramic substrates are generally more cost-effective than metal substrates, which makes them suitable for mass-market vehicles.
Lightweight: Ceramic honeycomb substrates are lighter than metal substrates, contributing to the overall fuel efficiency of the vehicle by reducing its weight.
Efficient for Lower Temperatures: Ceramic materials are well-suited for catalytic converters in vehicles that do not experience extremely high exhaust temperatures.
While ceramic substrates are more affordable and lightweight, they are less heat-resistant compared to metal substrates and may have a shorter lifespan under extreme driving conditions.
The honeycomb structure would not be as effective without the application of precious metals. Platinum (Pt), palladium (Pd), and rhodium (Rh) are typically used to coat the walls of the honeycomb. These noble metals serve as the catalyst that facilitates the chemical reactions responsible for cleaning the exhaust gases.
Platinum is a crucial catalyst in the conversion process. It helps to break down carbon monoxide (CO) into carbon dioxide (CO2), a much less harmful substance. This process significantly reduces the toxicity of the vehicle's exhaust.
Palladium plays a vital role in oxidizing hydrocarbons (HC), converting them into carbon dioxide and water vapor. This reaction is essential for reducing smog-forming emissions from vehicles.
Rhodium is primarily used in reducing nitrogen oxides (NOx) into nitrogen (N2) and oxygen (O2). Nitrogen oxides are harmful pollutants that contribute to the formation of smog and acid rain. Rhodium’s role in reducing NOx is therefore crucial in improving air quality and meeting environmental standards.
By using these precious metals, the honeycomb catalyst effectively speeds up the chemical reactions that transform harmful emissions into safer, environmentally friendly substances.
The honeycomb design in catalytic converters serves several key functions that optimize the vehicle’s emission control system.
The honeycomb design is specifically intended to maximize the surface area available for the exhaust gases to come into contact with the catalyst. The channels of the honeycomb substrate increase the surface area exponentially, allowing more exhaust gases to interact with the precious metals and undergo chemical transformations. This expanded surface area is crucial for ensuring efficient catalytic reactions, which ultimately leads to reduced vehicle emissions.
The design of the honeycomb also promotes smooth and efficient gas flow through the catalytic converter. The walls of the honeycomb cells are thin but strong enough to handle the exhaust gases without causing excessive backpressure, which could negatively affect engine performance. By ensuring that the gases flow efficiently through the converter, the system reduces the resistance in the exhaust system, leading to better overall vehicle performance.
The honeycomb structure’s design reduces the risk of backpressure, a common issue with older or poorly designed exhaust systems. Backpressure can lead to a reduction in engine efficiency and performance, causing issues such as increased fuel consumption and lower power output. By optimizing gas flow, the honeycomb catalyst ensures that the engine operates at peak efficiency while minimizing emissions.
Modern vehicles are required to meet stringent emission standards, such as Euro II, Euro III, Euro IV, and Euro V. These standards set limits on the amount of harmful substances, such as nitrogen oxides, hydrocarbons, and carbon monoxide, that a vehicle can emit.
The honeycomb catalyst plays a significant role in helping vehicles meet these standards. By facilitating the conversion of harmful gases into less dangerous compounds, the honeycomb design ensures that vehicles comply with environmental regulations. As governments around the world continue to enforce stricter emission controls to combat air pollution, the efficiency of the catalytic converter’s honeycomb design will be vital in ensuring that vehicles remain compliant.
The honeycomb structure not only plays a role in emissions control but also contributes to the overall performance of the vehicle. By reducing backpressure and allowing for a more efficient exhaust flow, the catalytic converter improves engine performance, which translates into better fuel efficiency and more power.
The primary function of the honeycomb catalyst is to reduce the harmful emissions produced by vehicles. By effectively converting pollutants into safer substances, honeycomb catalysts help reduce the environmental impact of vehicles. As more and more countries adopt stricter emission standards, the honeycomb catalyst will continue to be a vital component in keeping our air cleaner and our planet healthier.
The honeycomb structure’s ability to withstand high temperatures and physical stresses ensures that the catalytic converter remains functional for an extended period. Whether it’s a metal or ceramic substrate, the honeycomb design allows the converter to absorb thermal shocks and vibrations, ensuring that it continues to operate effectively throughout the life of the vehicle.
The honeycomb catalyst plays a pivotal role in modern catalytic converters, effectively enhancing emission control, promoting efficient gas flow, and maximizing surface area. By using advanced substrates, whether metal or ceramic, coated with precious metals like platinum, palladium, and rhodium, this design ensures harmful emissions are transformed into safer substances, improving both vehicle performance and air quality. As emission standards become more stringent, the honeycomb catalyst remains a critical component in reducing vehicles' environmental impact.
